Gleason vs. Klingelnberg Bevel Sets: Which One Fits Your Application?
In the world of precision gearing, Gleason and Klingelnberg represent two of the most established bevel gear technologies. While both offer advanced solutions for transmitting motion between intersecting shafts, their approaches to design, manufacturing, and application differ significantly. This article compares the two systems to help engineers and gearbox users make an informed choice.
Gleason Bevel Sets – The Hypoid & Spiral Gear Pioneer
- Curved Tooth Design: Gleason’s spiral bevel gears use a face milling method, producing a complex tooth form ideal for smooth torque transfer.
- Hypoid Gear Compatibility: Gleason excels in producing hypoid gears, which allow for shaft offset — widely used in automotive axles.
- Globally Popular: With over 150 years of heritage, Gleason gears are found in industries ranging from power tools to aerospace.
Klingelnberg Bevel Sets – High Precision with Uniform Load
- Spiral Gears via Face Hobbing: Klingelnberg’s method produces continuous tooth surfaces, ideal for high-speed, low-noise applications.
- Advanced Contact Patterning: Tooth geometry ensures consistent contact and excellent load distribution under dynamic torque.
- Precision-Focused: Klingelnberg gears are often used in aerospace, rail, and heavy industrial drives.

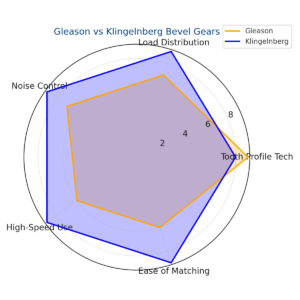

Technical Comparison
| Feature | Gleason | Klingelnberg |
|---|---|---|
| Tooth Generation | Face Milling | Face Hobbing |
| Application Speed | Medium–High | High-Speed Optimized |
| Load Distribution | Good | Excellent |
| Ease of Matching | Manual Patterning | Digital Matching |
Which One Should You Choose?
If your application involves automotive hypoid drives or traditional power transmission, Gleason’s long-standing proven designs may be preferred.
On the other hand, if your system requires low noise, high precision, and consistent torque delivery — especially in high-speed industrial or aerospace settings — Klingelnberg bevel sets are often superior.
GearboxBuddy’s Commitment to Precision — Why We Prefer Klingelnberg Spiral Bevels
At GearboxBuddy, our mission is to supply industrial gearbox users with reliable, high-performance spare parts that meet or exceed OEM standards. After years of serving customers across sectors — especially in cement, marine, and process industries — we’ve developed strong alignment with the Klingelnberg bevel gear design philosophy.
In particular, many of the bevel gear replacements we supply for FLENDER gearboxes are manufactured based on Klingelnberg geometry. Why?
- Superior Compatibility: Most FLENDER spiral bevel sets follow Klingelnberg profiles, ensuring smoother gear meshing and long service life.
- Global Standardization: Klingelnberg-based tooth systems are globally recognized and easier to manufacture with modern CNC and lapping techniques.
- Better Performance: Our customers report lower noise, more consistent contact patterns, and improved torque handling — all at competitive prices.
Whether you’re replacing a worn-out spiral bevel gear or need a matched set for FLENDER models like FZG, H, or P series, GearboxBuddy provides custom-engineered parts with fast turnaround, global delivery, and zero compromise on precision.
3 Responses
Solid article. No fluff, just value.
Nice article. One suggestion: A couple pictures would be helpful to see the difference.
I’m prototyping an invention. While it could use other types of gears, I am thinking that a flat (vertical) helical gear with smaller gears to match, is the way to do this.
I don’t want to spend a lot when I haven’t proven that the prototype works. The prototype can really be of any size, since I just need to verify how it moves, not its ability to handle torque.
Do you have any small, inexpensive versions of these gears? Klingelnberg vs Gleason doesn’t matter to me at this stage. I could possibly even just use crown gears.
Also, if you have CAD files for these, I could 3D print them, do my proof of concept in plastic, and then come to you for metal.
Thanks!
Hi James
Thanks a lot for your comment and for reading the article! You’re absolutely right – a couple of clear side-by-side pictures would make the Klingelnberg vs Gleason differences much easier to see. I’ll update a future version of the post with some visuals.
For your prototype: our main work is custom bevel / spiral bevel gears (Klingelnberg & Gleason systems) and gearbox spares for industrial applications, so we usually produce to drawing rather than keeping very small “hobby” gears on the shelf.
That said, for a proof-of-concept there are a few options:
• 3D-printed POC – If you share some basic data (approx. diameter, gear ratio, shaft angle, module/DP, and whether you prefer helical / crown / bevel), we can see if we have something close in our library and may be able to provide a simplified CAD model for you to 3D print in plastic first.
• Small, low-cost metal gears – Once your prototype concept is proven, we can then quote small-size metal gears based on the geometry that works for you. At this early stage, as you said, Klingelnberg vs Gleason doesn’t really matter; we just need a geometry that matches your motion.
If you’d like to explore this, feel free to email me with a short description of your mechanism and any rough dimensions, and I’ll see what’s realistic within a “prototype” budget: gearboxbuddy@outlook.com
Thanks again for the suggestion and for sharing your project – sounds like a fun invention!
