Exploring ATA and Klingelnberg Bevel Sets: Precision Engineering in Motion

In the world of gearbox and power transmission design, bevel gears play a pivotal role in transferring torque between intersecting shafts. Among the many designs available, ATA bevel sets and Klingelnberg bevel sets stand out as two distinct engineering solutions — each suited to specific technical needs. This post explores their differences, strengths, and ideal applications.

ATA Bevel Sets – Flexible and Customizable

• Tooth Geometry Customization: ATA (Addendum Tooth Alteration) designs allow adjustments to tooth thickness and addendum height for optimized contact and performance.
• Application Versatility: Perfect for specialized machinery where standard bevel sets may not fit or perform reliably.
• Enhanced Contact Pattern: Customized profiles reduce stress points and wear, increasing service life.

Klingelnberg Bevel Sets – Precision at High Speed

• Spiral Tooth Engineering: Klingelnberg spiral bevels provide smoother and quieter operation, especially under dynamic loads.
• Superior Load Capacity: Gradual engagement spreads the load more evenly across teeth, ideal for demanding applications.
• High-Tech Manufacturing: Produced using advanced cutting and lapping methods for exceptional precision and repeatability.

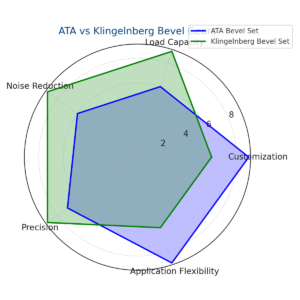

When to Use ATA vs. Klingelnberg?

ATA bevel sets are ideal for custom machines, retrofits, or unique transmission paths where standard geometry may not suffice.
Klingelnberg bevel sets are the go-to choice in high-speed, high-torque environments like automotive differentials, aircraft transmissions, or heavy-duty drive units.

Conclusion

Choosing the right bevel set is about more than gear dimensions — it’s about fit, function, and performance under pressure. Whether you need customizable flexibility with ATA or cutting-edge spiral precision with Klingelnberg, GearboxBuddy can help you find the perfect match.
